Rexolite® Machining
Rexolite® polystyrene plastic exhibits good dimensional stability, excellent sound transmission characteristics, and optical clarity roughly equal to acrylic materials. The most notable feature of Rexolite®, however, is that it maintains incredibly stable electrical properties into gigahertz frequencies. This extremely lightweight plastic is easy to machine, and Upland Fab has the expertise to deliver high precision Rexolite® parts and components that match your designs exactly.
Properties of & Applications for Rexolite® Polystyrene
Manufactured by C-Lec Plastics, Inc., Rexolite® is a unique, cross-linked polystyrene, microwave plastic. It maintains a dielectric constant of 2.53 through 500 GHz, with an extremely low dissipation factor; it experiences very little change in dielectric loss and minimal mechanical deterioration in radiation exposure up to 1000M rads.
Rexolite® provides excellent rigidity and dimensional stability, and good chemical resistance. It is also a water-resistant plastic, and can withstand operating temperatures from -455° to 349°F (-270° to 176°C).
These and other characteristics make Rexolite® an ideal material for microwave components, high-frequency circuit substrates, antennae, sound transducers, nondestructive material testing devices, radar windows, and other demanding applications.
Proven Experts in Rexolite® Machining

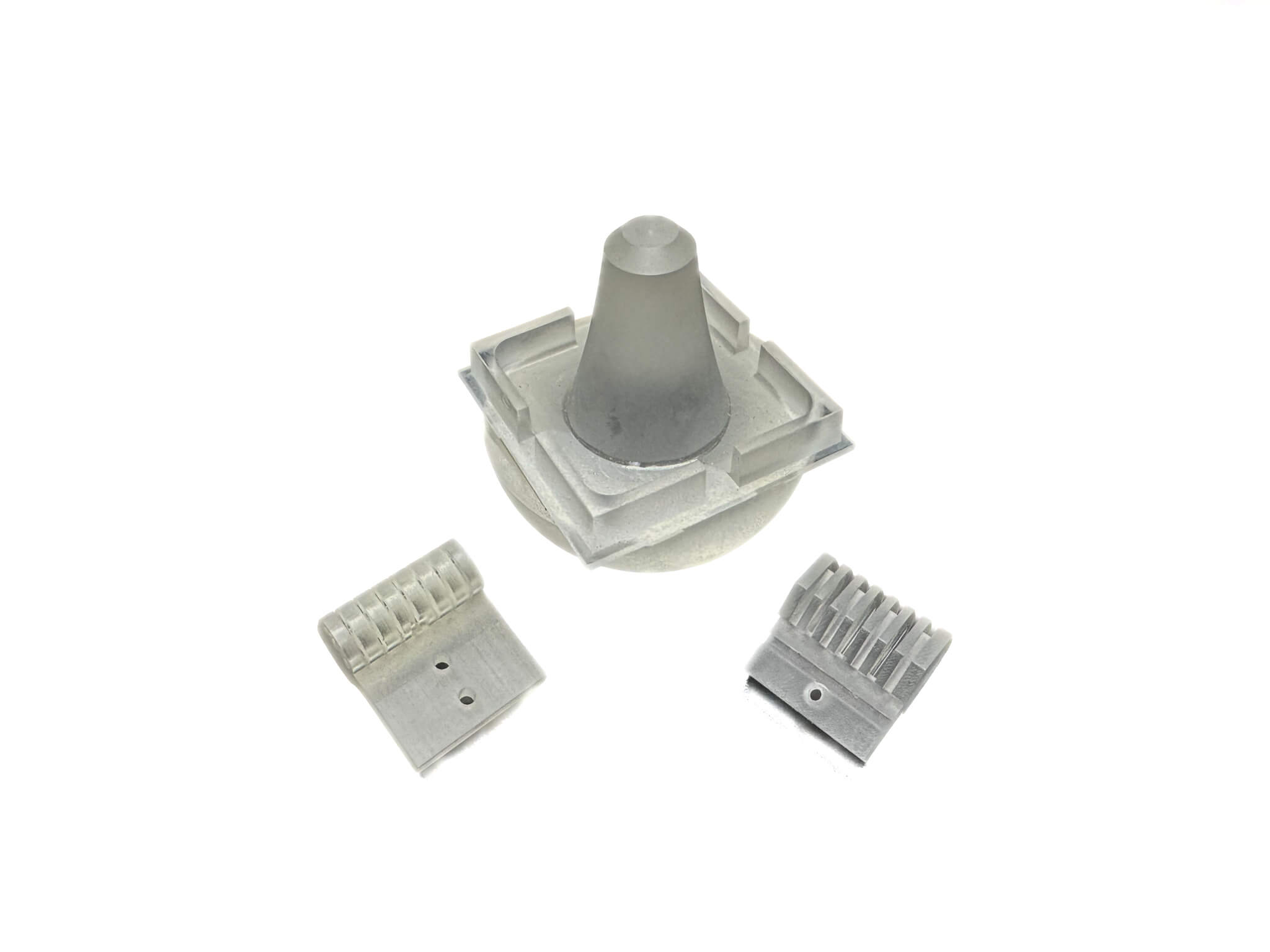

Upland Fab utilizes multi-axis machining to produce Rexolite® parts. Our state-of-the-art CNC machining technology enables us to manufacture your components with minimal handling and fixturing requirements. In most cases, even the most intricate parts can be completed in a single operation, significantly reducing turnaround times.
Our machining capabilities include:
Additionally, our DPD/MBD processes (Digital Product Definition/Model-Based Definition) allow us to work directly from your digital CAD models. By leveraging your design files, we eliminate machining errors and improve the accuracy and precision of the resulting parts. This ensures better quality parts at lower prices.
Stay In the Loop with Upland Fab’s Top-Flight Communication
We know how important reliable communication is to the success of a project. With Upland Fab, you’ll have a single point of contact through from the first stage to the last, and you’ll receive timely updates that will keep you informed on the progress of your project. We keep you up to date every step of the way.
Properties of Rexolite® Polystyrene
| ASTM or UL test | Property |
Rexolite® 1422 unfilled |
Rexolite® 2300 glass-filled |
| PHYSICAL | |||
| D792 | Density (lb/in³) (g/cm³) |
0.038 1.05 |
0.042 1.11 |
| D570 | Water Absorption, 24 hrs (%) | 0.0008 | 0.10 |
| MECHANICAL | |||
| D638 | Tensile Strength (psi) | 9,000 | 9,500 |
| D638 | Flexural Strength (psi) | 11,500 | 10,500 |
| D256 | IZOD Notched Impact (ft-lb/in) | 0.3 | 0.75 |
| THERMAL | |||
| D696 | Coefficient of Linear Thermal Expansion(x 10-5 in./in./°F) | 3.8 | 3.2 |
| D648 |
Recommended Operating Temperature Range (°F) (°C) |
-76 to +212 -60 to +100 |
-103 to +212 -75 to +100 |
| C177 | Thermal Conductivity (BTU-in/ft²-hr-°F) (x 10-4 cal/cm-sec-°C) |
1.01 3.5 |
1.45 5.0 |
| ELECTRICAL | |||
| D149 | Dielectric Strength (V/mil) short time, 1/8" thick | 500 | 500 |
| D150 | Dielectric Constant (1 MHz to 500 GHz) | 2.53 | 2.62 |
| D150 | Dissipation Factor at 1 MHz at 10 MHz at 10 GHz |
0.00012 0.00025 0.00066 |
0.0004 0.0005 0.0014 |
| D257 | Surface Resistivity (ohm-cm)at 50% RH | >1014 | 5 x 1012 |
| D257 | Volume Resistivity (ohm-cm)at 50% RH | >1016 | 5 x 1013 |
| OPTICAL AND ACOUSTIC | |||
| - | Acoustic Impedance | 2.5 | - |
| - | Velocity of Sound (in/sec) | 93,000 | - |
| - | Optical Transmittance, Visible Light | 87% | - |
| - | Refractive Index @ 589 nM @ 486 nM @ 656 nM |
1.59 1.604 1.585 |
- |
| - | Velocity of Sound (in/sec) | 93,000 | - |
Other Materials We Work With
Are you looking for another material? We have the ability to machine many different materials take a look below at some of the other plastics we work with.
Contact Upland Fab to Learn More About Rexolite® Machining
We have provided top-flight plastic and composite machining in Southern California since 1970. Contact us to discuss your Rexolite® machining needs or request a quote to get the ball rolling.
